api.hpp File Reference
#include <reusex/pipeline/JobRunner.hpp>#include <reusex/pipeline/stages.hpp>#include <nlohmann/json.hpp>#include <cstdint>#include <filesystem>#include <functional>#include <map>#include <optional>#include <stdexcept>#include <string>#include <string_view>#include <utility>#include <vector>

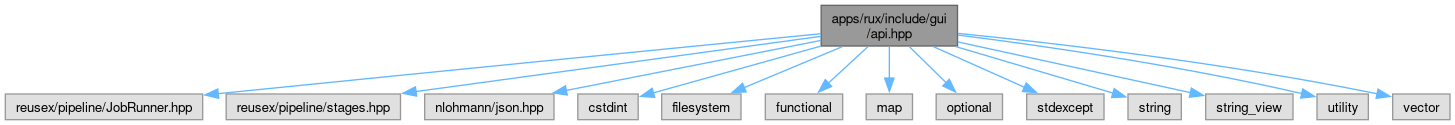

Include dependency graph for api.hpp:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | rux::gui::HttpError |
| Thrown by a handler to produce a non-200 JSON error response. More... | |
| struct | rux::gui::Blob |
| A non-JSON response body (image, mesh blob). More... | |
| struct | rux::gui::Endpoint |
| One row of the route table. More... | |
| class | rux::gui::Params |
| Already-decoded query parameters, so handlers never touch crow::request. More... | |
| struct | rux::gui::PageRequest |
| A validated, clamped offset/limit window over a collection. More... | |
| struct | rux::gui::PageWindow |
| The half-open [first, last) index range a page covers, plus the size of the collection it was taken from. More... | |
| struct | rux::gui::PointsResponse |
| One points-endpoint response. More... | |
| struct | rux::gui::ValueRange |
| Range of the valid stored values a normalize=true rendering mapped. More... | |
| struct | rux::gui::ImageResponse |
| An encoded image plus the provenance of any rendering applied to it. More... | |
| struct | rux::gui::JobSubmission |
| A validated POST /jobs body. More... | |
Namespaces | |
| namespace | reusex |
| namespace | rux |
| namespace | rux::gui |
Functions | |
| const std::vector< Endpoint > & | rux::gui::endpoint_table () |
| Every endpoint this server serves, in documentation order. | |
| PageRequest | rux::gui::parse_page_request (const Params ¶ms, long long default_limit, long long max_limit) |
| Parse and clamp offset/limit for a paged collection. | |
| PageWindow | rux::gui::page_window (const PageRequest &page, size_t total) |
Clamp page onto a collection of total items. | |
| void | rux::gui::add_page_envelope (nlohmann::json &object, const PageWindow &window) |
| Add the shared offset/count/total envelope to a collection response. | |
| nlohmann::json | rux::gui::error_json (int status, std::string_view message) |
| nlohmann::json | rux::gui::health_json (const reusex::ProjectDB *db, const std::filesystem::path &project) |
| nlohmann::json | rux::gui::endpoints_json () |
| nlohmann::json | rux::gui::project_summary_json (const reusex::ProjectDB &db) |
| The dashboard payload. | |
| nlohmann::json | rux::gui::projects_json (const reusex::ProjectDB &db, const Params ¶ms) |
| nlohmann::json | rux::gui::clouds_json (const reusex::ProjectDB &db, const Params ¶ms) |
| nlohmann::json | rux::gui::cloud_json (const reusex::ProjectDB &db, const std::string &name) |
| nlohmann::json | rux::gui::cloud_labels_json (const reusex::ProjectDB &db, const std::string &name) |
| Label id → name for one cloud, as {"labels": {...}}. | |
| nlohmann::json | rux::gui::cloud_points_json (const reusex::ProjectDB &db, const std::string &name, const Params ¶ms) |
| One page of point data as JSON, ignoring format. | |
| PointsResponse | rux::gui::cloud_points (const reusex::ProjectDB &db, const std::string &name, const Params ¶ms) |
| Serve one page of point data in the requested wire format. | |
| nlohmann::json | rux::gui::meshes_json (const reusex::ProjectDB &db, const Params ¶ms) |
| nlohmann::json | rux::gui::mesh_json (const reusex::ProjectDB &db, const std::string &name) |
| nlohmann::json | rux::gui::mesh_textures_json (const reusex::ProjectDB &db, const std::string &name) |
| Blob | rux::gui::mesh_data_blob (const reusex::ProjectDB &db, const std::string &name) |
| Blob | rux::gui::mesh_texture_blob (const reusex::ProjectDB &db, const std::string &name, const std::string &texture) |
| nlohmann::json | rux::gui::frames_json (const reusex::ProjectDB &db, const Params ¶ms) |
| nlohmann::json | rux::gui::frame_json (const reusex::ProjectDB &db, int id) |
| ImageResponse | rux::gui::frame_image (const reusex::ProjectDB &db, int id, const Params ¶ms) |
| One of a frame's images, encoded as PNG. | |
| nlohmann::json | rux::gui::panoramas_json (const reusex::ProjectDB &db, const Params ¶ms) |
| nlohmann::json | rux::gui::panorama_json (const reusex::ProjectDB &db, int id) |
| Blob | rux::gui::panorama_image_blob (const reusex::ProjectDB &db, int id, const Params ¶ms) |
| The equirectangular image, JPEG-encoded. | |
| nlohmann::json | rux::gui::components_json (const reusex::ProjectDB &db, const Params ¶ms) |
| nlohmann::json | rux::gui::component_json (const reusex::ProjectDB &db, const std::string &name) |
| nlohmann::json | rux::gui::materials_json (const reusex::ProjectDB &db, const Params ¶ms) |
| nlohmann::json | rux::gui::material_json (const reusex::ProjectDB &db, const std::string &guid) |
| nlohmann::json | rux::gui::instances_json (const reusex::ProjectDB &db, const std::string &cloud, const Params ¶ms) |
| nlohmann::json | rux::gui::stages_json (const reusex::ProjectDB &db) |
| nlohmann::json | rux::gui::stage_validation_json (const reusex::ProjectDB &db, const std::string &stage) |
| Input-contract validation for a single stage. | |
| nlohmann::json | rux::gui::pipeline_log_json (const reusex::ProjectDB &db, const Params ¶ms) |
| nlohmann::json | rux::gui::job_json (const reusex::pipeline::JobRecord &record, std::string_view project) |
| nlohmann::json | rux::gui::jobs_json (const std::vector< reusex::pipeline::JobRecord > &jobs, std::string_view project) |
| Every supplied job, unpaged, as {"jobs": [...]}. | |
| nlohmann::json | rux::gui::jobs_page_json (const std::vector< reusex::pipeline::JobRecord > &jobs, std::string_view project, const Params ¶ms) |
| GET /jobs: one page of the job store, with the shared envelope. | |
| nlohmann::json | rux::gui::job_event_json (const reusex::pipeline::JobEvent &event, std::string_view project) |
| nlohmann::json | rux::gui::hello_json (const std::vector< reusex::pipeline::JobRecord > &jobs, const std::filesystem::path &project) |
| JobSubmission | rux::gui::parse_job_request (std::string_view body) |
| Parse and validate a job submission body. | |
| void | rux::gui::check_job_project (const JobSubmission &submission, std::string_view open_project) |
| Reject a submission aimed at a different project. | |
| std::optional< nlohmann::json > | rux::gui::handle_ws_message (std::string_view body, const std::function< void(std::optional< std::string >)> &subscribe) |
| Handle one client message on the WebSocket channel. | |
| bool | rux::gui::event_matches_subscription (const reusex::pipeline::JobEvent &event, const std::optional< std::string > &subscription) |
True when event should be delivered to a connection filtered to subscription (nullopt = unfiltered, receives everything). | |
Variables | |
| constexpr std::string_view | rux::gui::kApiVersion = "1.0.0" |
| Contract version served under kApiPrefix. | |
| constexpr std::string_view | rux::gui::kApiPrefix = "/api/v1" |
| constexpr std::string_view | rux::gui::kImplementation = "rux-gui" |
| Identifies which implementation of the contract is answering. | |
| constexpr size_t | rux::gui::kMaxPointsPerPage = 1000000 |
| Upper bound on limit for the paged points endpoint, so a stray query cannot ask the server to materialize an unbounded response. | |
| constexpr size_t | rux::gui::kDefaultPointsPerPage = 100000 |
| constexpr int | rux::gui::kMaxLogEntries = 1000 |
| Upper bound on limit for the pipeline-log endpoint. | |
| constexpr int | rux::gui::kDefaultLogEntries = 100 |
| constexpr int | rux::gui::kMaxCollectionItems = 1000 |
| Upper bound on limit for the ordinary object collections (clouds, meshes, panoramas, components, materials, instances, jobs, project records). | |
| constexpr int | rux::gui::kMaxFrameIds = 10000 |
| Upper bound on limit for the sensor-frame id list. | |
| constexpr int | rux::gui::kMaxImageSize = 4096 |
| Upper bound on the max_size image parameter. | |
| constexpr int | rux::gui::kWriteLockTimeoutMs = 250 |
| How long a mutating request waits for the project's writer lock before answering 503. | |
