rux::database::LabelRouter Class Reference

Router for segmentation_images (read-only). More...

#include <label_router.hpp>

Inheritance diagram for rux::database::LabelRouter:

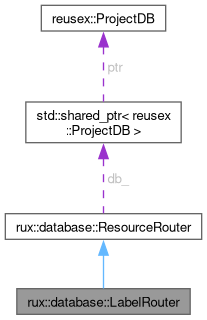

Collaboration diagram for rux::database::LabelRouter:

Public Member Functions
DataPayload	get (const std::vector< PathComponent > &components) override
	Get resource data at the given path.
void	set (const std::vector< PathComponent > &components, const DataPayload &data) override
	Set resource data at the given path.
void	del (const std::vector< PathComponent > &components) override
	Delete resource at the given path.
std::vector< std::string >	list () const override
	List all items in this collection.
	ResourceRouter (std::shared_ptr< reusex::ProjectDB > db)
Public Member Functions inherited from rux::database::ResourceRouter
	ResourceRouter (std::shared_ptr< reusex::ProjectDB > db)
virtual	~ResourceRouter ()=default
std::optional< std::string >	resolve_index (int index) const
	Resolve array index to item name/id.

Additional Inherited Members
Protected Attributes inherited from rux::database::ResourceRouter
std::shared_ptr< reusex::ProjectDB >	db_

Detailed Description

Router for segmentation_images (read-only).

Each entry is a per-frame semantic label raster keyed by sensor-frame node_id. The in-memory format is CV_32S with -1 for background and 0+ for class ids.

Handles paths like:

• labels → list all node_ids (JSON array)
• labels.<id> → PNG of the raster, stored CV_16U +1 offset (background = 0). Use .metadata for headers.
• labels[N] → same as above, by index
• labels.<id>.metadata → JSON with node_id, width, height, num_classes
• labels.<id>.image → PNG of the raster (same as default)

Definition at line 26 of file label_router.hpp.

Member Function Documentation

del()

void rux::database::LabelRouter::del ( const std::vector< PathComponent > & components )

overridevirtual

Delete resource at the given path.

Parameters

components

Parsed path components (after collection)

Exceptions

std::runtime_error

if operation fails

Implements rux::database::ResourceRouter.

get()

DataPayload rux::database::LabelRouter::get ( const std::vector< PathComponent > & components )

overridevirtual

Get resource data at the given path.

Parameters

components

Parsed path components (after collection)

Returns

Data payload

Exceptions

std::runtime_error

if path is invalid or resource not found

Implements rux::database::ResourceRouter.

list()

std::vector< std::string > rux::database::LabelRouter::list ( ) const

overridevirtual

List all items in this collection.

Used for wildcard expansion and array indexing. Returns items in deterministic order (see MEMORY.md).

Returns

Ordered list of item names/ids

Implements rux::database::ResourceRouter.

ResourceRouter()

rux::database::ResourceRouter::ResourceRouter ( std::shared_ptr< reusex::ProjectDB > db )

inlineexplicit

Definition at line 28 of file resource_router.hpp.

set()

void rux::database::LabelRouter::set ( const std::vector< PathComponent > & components, const DataPayload & data )

overridevirtual

Set resource data at the given path.

Parameters

components	Parsed path components (after collection)
data	Input data

Exceptions

std::runtime_error

if operation fails

Implements rux::database::ResourceRouter.

---

The documentation for this class was generated from the following file:

• apps/rux/include/database/label_router.hpp
