rux::database::ResourceRouter Class Reference

Base interface for resource routers. More...

#include <resource_router.hpp>

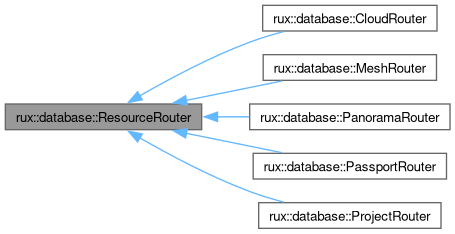

Inheritance diagram for rux::database::ResourceRouter:

Collaboration diagram for rux::database::ResourceRouter:

Public Member Functions
	ResourceRouter (std::shared_ptr< reusex::ProjectDB > db)
virtual	~ResourceRouter ()=default
virtual DataPayload	get (const std::vector< PathComponent > &components)=0
	Get resource data at the given path.
virtual void	set (const std::vector< PathComponent > &components, const DataPayload &data)=0
	Set resource data at the given path.
virtual void	del (const std::vector< PathComponent > &components)=0
	Delete resource at the given path.
virtual std::vector< std::string >	list () const =0
	List all items in this collection.
std::optional< std::string >	resolve_index (int index) const
	Resolve array index to item name/id.

Protected Attributes
std::shared_ptr< reusex::ProjectDB >	db_

Detailed Description

Base interface for resource routers.

Each resource type (clouds, meshes, frames, etc.) implements this interface to handle get/set/del operations for its specific resource type.

Definition at line 26 of file resource_router.hpp.

Constructor & Destructor Documentation

ResourceRouter()

rux::database::ResourceRouter::ResourceRouter ( std::shared_ptr< reusex::ProjectDB > db )

inlineexplicit

Definition at line 28 of file resource_router.hpp.

References db_.

~ResourceRouter()

virtual rux::database::ResourceRouter::~ResourceRouter ( )

virtualdefault

Member Function Documentation

del()

virtual void rux::database::ResourceRouter::del ( const std::vector< PathComponent > & components )

pure virtual

Delete resource at the given path.

Parameters

components

Parsed path components (after collection)

Exceptions

std::runtime_error

if operation fails

Implemented in rux::database::CloudRouter, rux::database::MeshRouter, rux::database::PanoramaRouter, rux::database::PassportRouter, and rux::database::ProjectRouter.

get()

virtual DataPayload rux::database::ResourceRouter::get ( const std::vector< PathComponent > & components )

pure virtual

Get resource data at the given path.

Parameters

components

Parsed path components (after collection)

Returns

Data payload

Exceptions

std::runtime_error

if path is invalid or resource not found

Implemented in rux::database::CloudRouter, rux::database::MeshRouter, rux::database::PanoramaRouter, rux::database::PassportRouter, and rux::database::ProjectRouter.

list()

virtual std::vector< std::string > rux::database::ResourceRouter::list ( ) const

pure virtual

List all items in this collection.

Used for wildcard expansion and array indexing. Returns items in deterministic order (see MEMORY.md).

Returns

Ordered list of item names/ids

Implemented in rux::database::CloudRouter, rux::database::MeshRouter, rux::database::PanoramaRouter, rux::database::PassportRouter, and rux::database::ProjectRouter.

Referenced by resolve_index().

resolve_index()

std::optional< std::string > rux::database::ResourceRouter::resolve_index ( int index ) const

inline

Resolve array index to item name/id.

Parameters

index

Array index

Returns

Item name/id if valid, nullopt otherwise

Definition at line 74 of file resource_router.hpp.

References list().

set()

virtual void rux::database::ResourceRouter::set ( const std::vector< PathComponent > & components, const DataPayload & data )

pure virtual

Set resource data at the given path.

Parameters

components	Parsed path components (after collection)
data	Input data

Exceptions

std::runtime_error

if operation fails

Implemented in rux::database::CloudRouter, rux::database::MeshRouter, rux::database::PanoramaRouter, rux::database::PassportRouter, and rux::database::ProjectRouter.

Member Data Documentation

db_

std::shared_ptr<reusex::ProjectDB> rux::database::ResourceRouter::db_

protected

Definition at line 83 of file resource_router.hpp.

Referenced by ResourceRouter().

---

The documentation for this class was generated from the following file:

• apps/rux/include/database/resource_router.hpp
